INFINITY SCAN

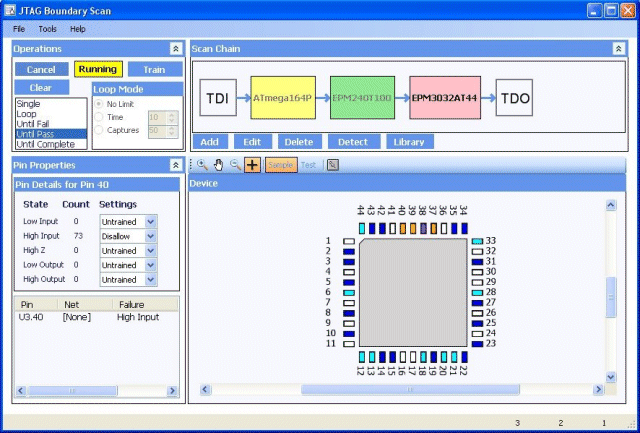

Infinity SCAN provides JTAG Boundary Scan testing for IEEE-1149.1 JTAG compliant circuit boards. An extensive supplied library of BSDL files allows for the JTAG Scan Chain to be automatically detected, with a BSDL file import function allowing new devices to be added to the library.

A training feature means that Infinity SCAN can learn the status of the board by itself, significantly reducing the functional test setup time. Automatic data comparison allows for quick evaluation with simple pass/fail results.

A Production Mode plug-in allows for detailed statistics to be stored, for evaluation as required. The Netlist importer plug-in allows PCB information to be imported to ease the setup process.

COM Object script control allows full integration of software into user's GUI. Infinity SCAN is fully compatible with LabVIEW

Please Note: not all Boundary Scan Test features are available on all versions of the Infinity SCAN software. See Product Matrix for more details or contact Atomic Programming
