INFINITY SUITE

Atomic Programming has developed a range of software products that help overcome the challenges of testing circuits with small form factor, high-pin count devices, by automating the functional test procedures on IEEE-1149.1 JTAG compliant circuit boards.

The Infinity Suite of software works alongside a Universal Hardware Platform, the AP-114 ISP/JTAG Programming System.

The tools within the suite provide complete board coverage. Infinity Express offers Universal support for In-System Programming (ISP) and configuration of JTAG compatible devices using generic SVF or JAM/STAPL files. Infinity Scan provides a powerful JTAG Boundary Scan function, with plug-ins giving full support for Production applications. Infinity APEL, with its own Embedded Script language, provides comprehensive functional testing and debugging of boards, including non-JTAG devices. Infinity MX32 supports JTAG programming of Microchip PIC32MX devices. Infinity JN516X supports JTAG programming of NXP JN516X devices

For complete board coverage, Infinity Studio gives you all the applications for JTAG programming, testing and debugging.

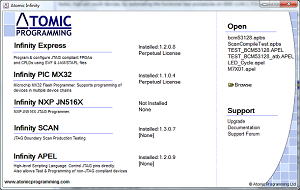

Each application is run from Infinity Launch Pad, which enables users to keep track of their current software version, check for any upgrades, as well as access recent files and support documentation.

Note: not all features available on all versions of software. See Product Matrix for full details

Express	SCAN	APEL	MX32	JN516X
Universal JTAG Programming using SVF or JAM files Altera FPGA configuration using CDF files generated by Quartus II In-System Programming of Altera EPCS configuration PROMs using RPD files generated by Quartus II Console commands allow full integration of software into user's GUI Includes Generic GDB Proxy Server Compatible with LabVIEW Supplied as standard with the AP-114 Hardware	JTAG Boundary Scan testing JTAG Scan Chain auto-detection BSDL file import Automatic board testing Production logging plug-in Net-List importer plug-in COM Object script control allows full integration of software into user's GUI Compatible with LabVIEW	JTAG Embedded-test Language Rapid Test Development Combine with Boundary Scan tests for Extended test coverage Full Development Environment Run scripts using the COM Object and Console mode applications APEL Player: compile scripts to run at remote sites without having to release source code Full Code Reuse Atomic Library download and support	Programs Microchip MX32 device usign JTAG Supports Device that are part of a larger JTAG chain Full GUI or command-line options Support boot sector and Application Sector Programming Atomic Library Supported	Programs JN5161/2/4/8/9 Devices Uses JTAG for faster programming Supports programming of both the boot and application memories Full GUI or command-line options Supports custom MAC addresses Supports all configuration options
